real-time battle data Android release software

For the League of legends game, the gaming data monitoring software is commonly running on PC terminal, however, it’s inconvenient for user to get realtime gaming data. Therefore the strong demand for mobile realtime monitoring software and rapid development of the Android platform smart terminal provide a technical support for the mobility of the gaming data monitoring software.

Combining with mobile monitoring software mobility and real-time needs, this paper put forward a gaming data mobile monitoring software system solution. it is divided into 3 modules including server communication framework, data management, Android client. The server is implemented based on an asynchronous network communication framework named MINA. Android client use achartengine to draw chart and use class handler to update chart .

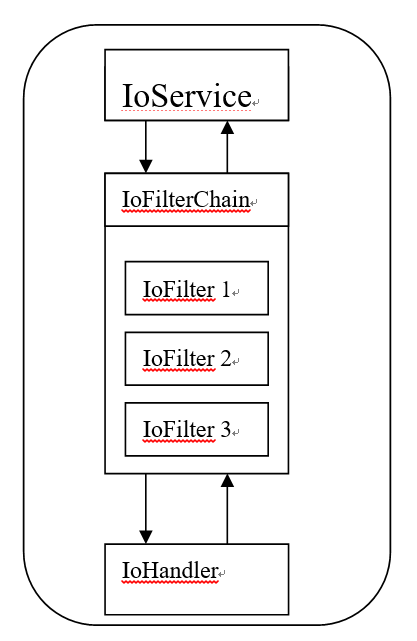

Mina detailed architecture diagram

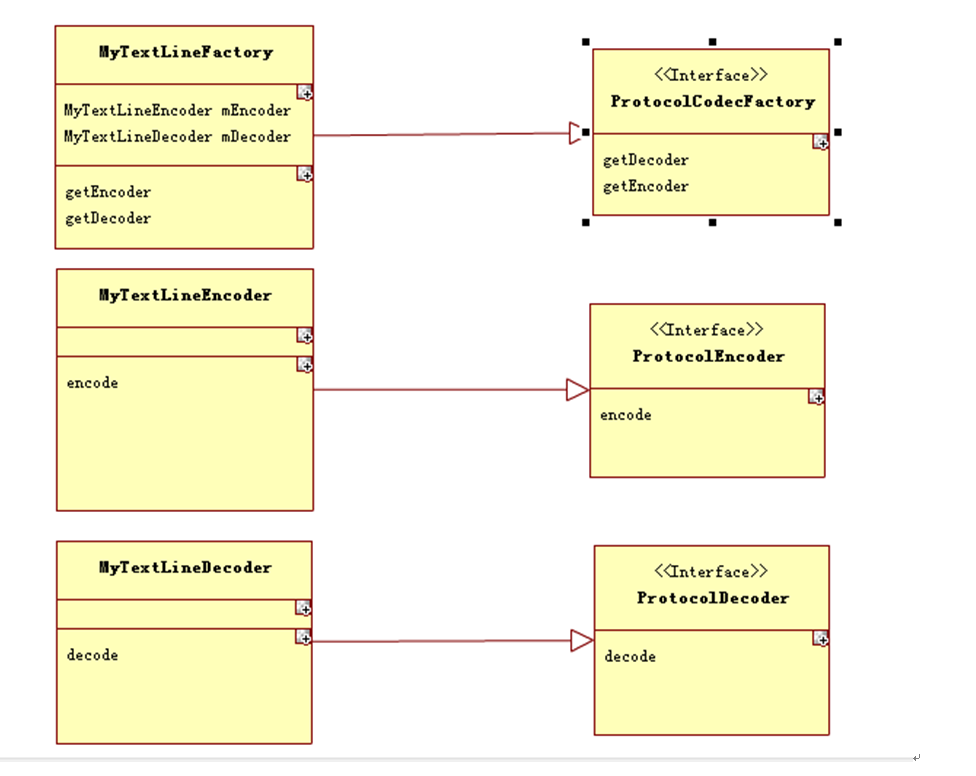

Filter class diagram

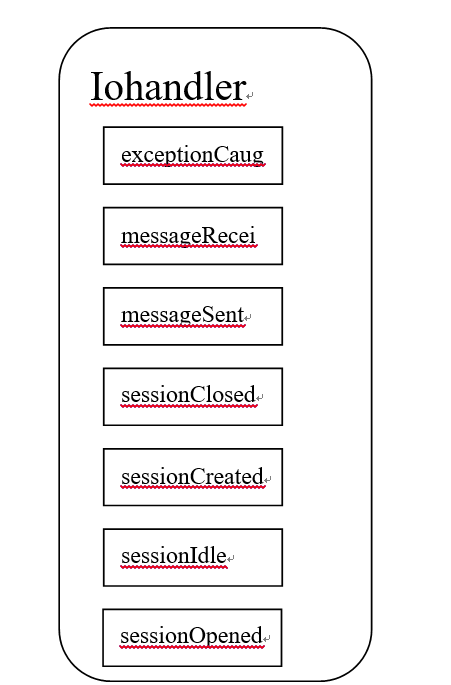

IoHandler package method

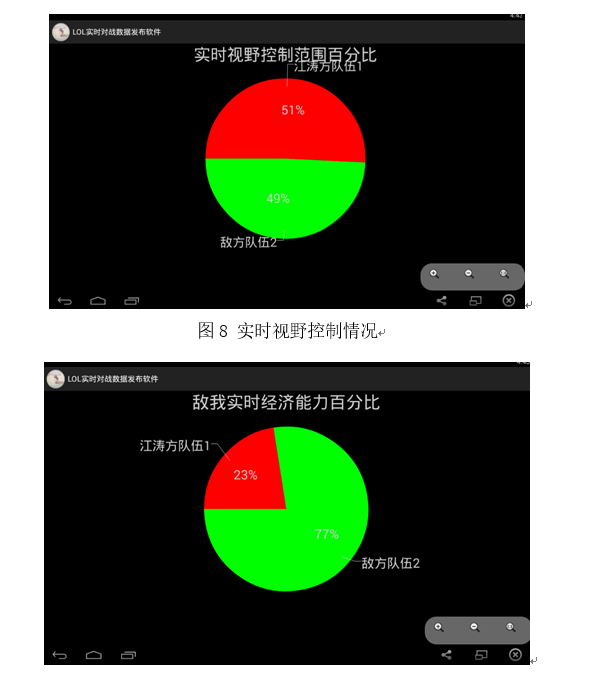

Real-time visual field control situation and real-time economic capability comparison

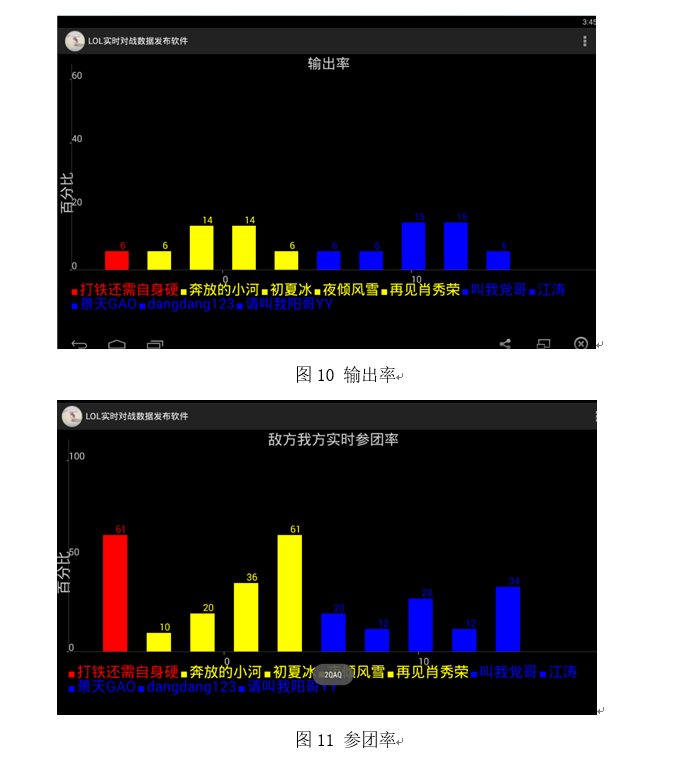

Output rate and participation rate

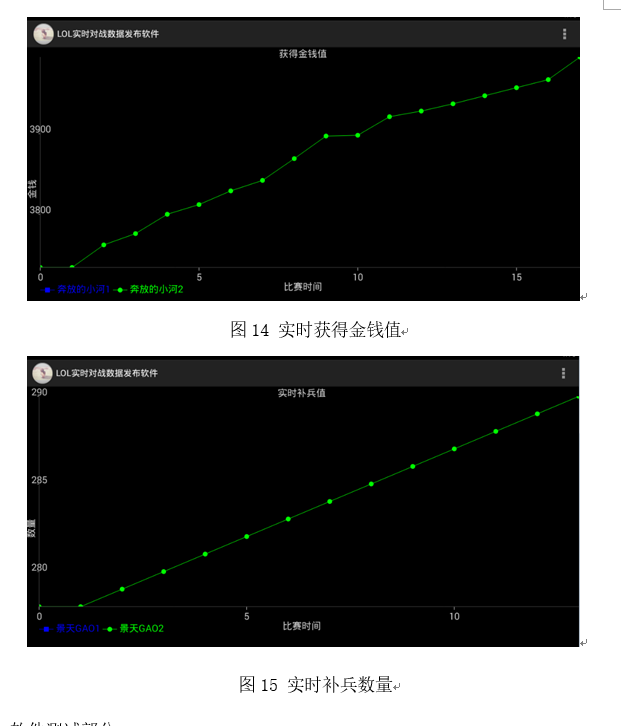

Get real-time money value and real-time replenishment number

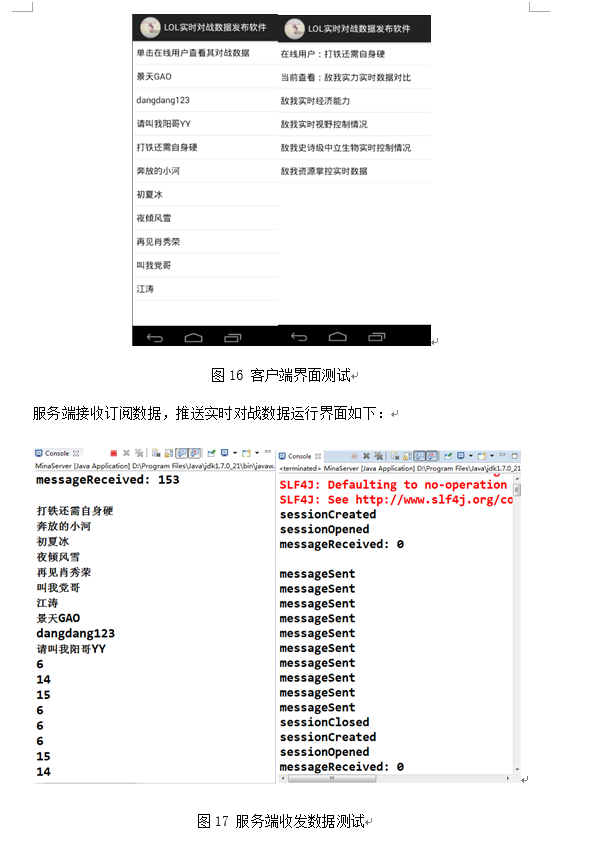

Client interface and server receiving and sending data test
